Tabloid-landscape (17" × 11") diagrams showing how our 13 products integrate into a typical radiology customer environment. Free download in three formats: SVG (scalable, web), PNG (image), and PDF (print-shop ready). Per-product variants available for sales-call deep dives.
All posters are licensed for free use in customer presentations, internal training, and partner enablement. Print, email, embed — no attribution required beyond what's on the poster itself.

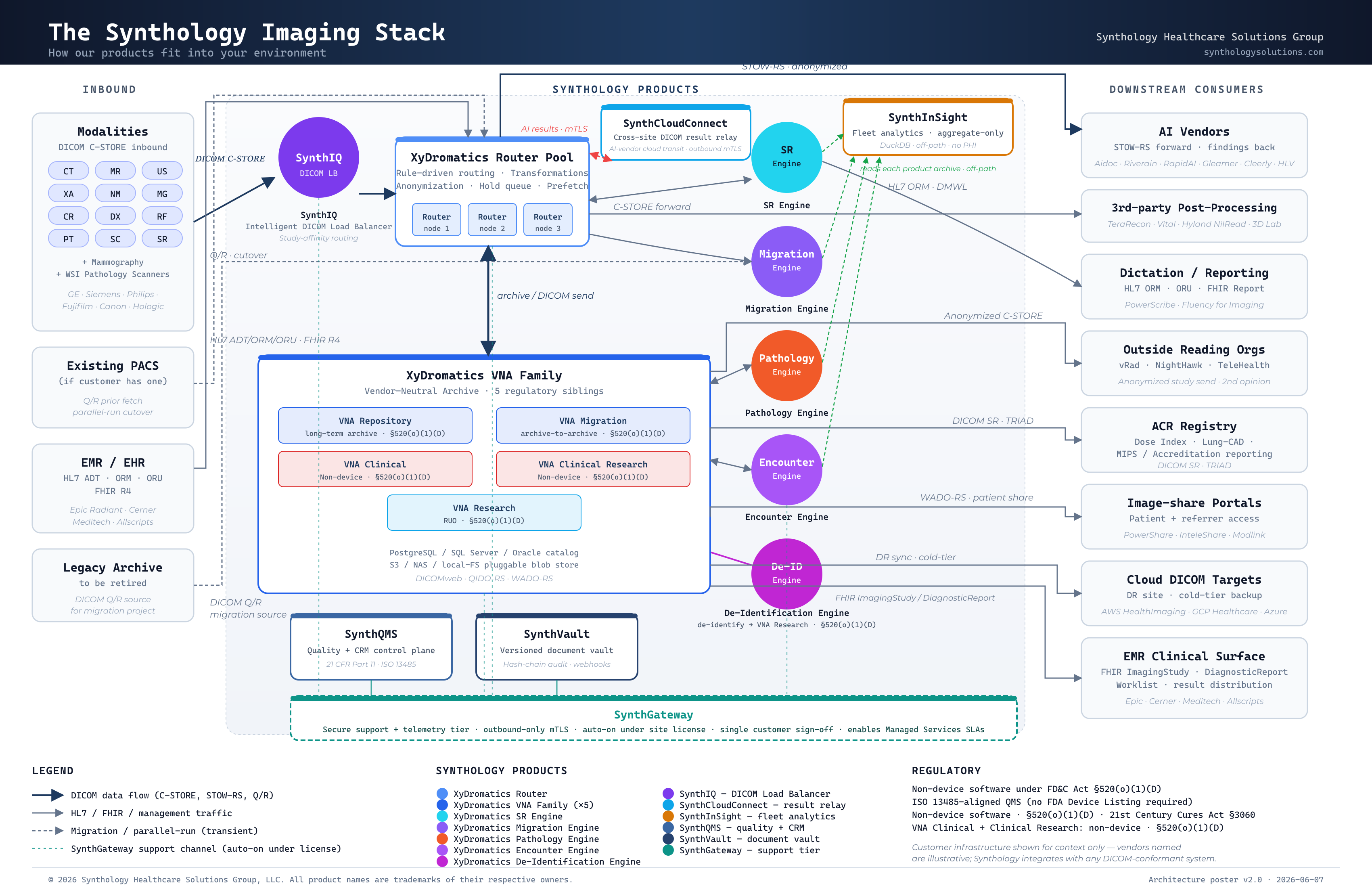

Master ecosystem poster
The complete reference — all 14 products in their relative positions, with sample customer infrastructure on either side.
The complete reference architecture. Modalities → SynthIQ → Router → VNA, with all specialized engines + downstream consumers (AI vendors, ACR, EMR, dictation, outside reading, image-share portals, cloud DICOM). Use for prospect introductions, trade-show backdrops, internal training.
Solution suites
Multiple products working as one workflow, shown end to end — including the customer systems on either side.

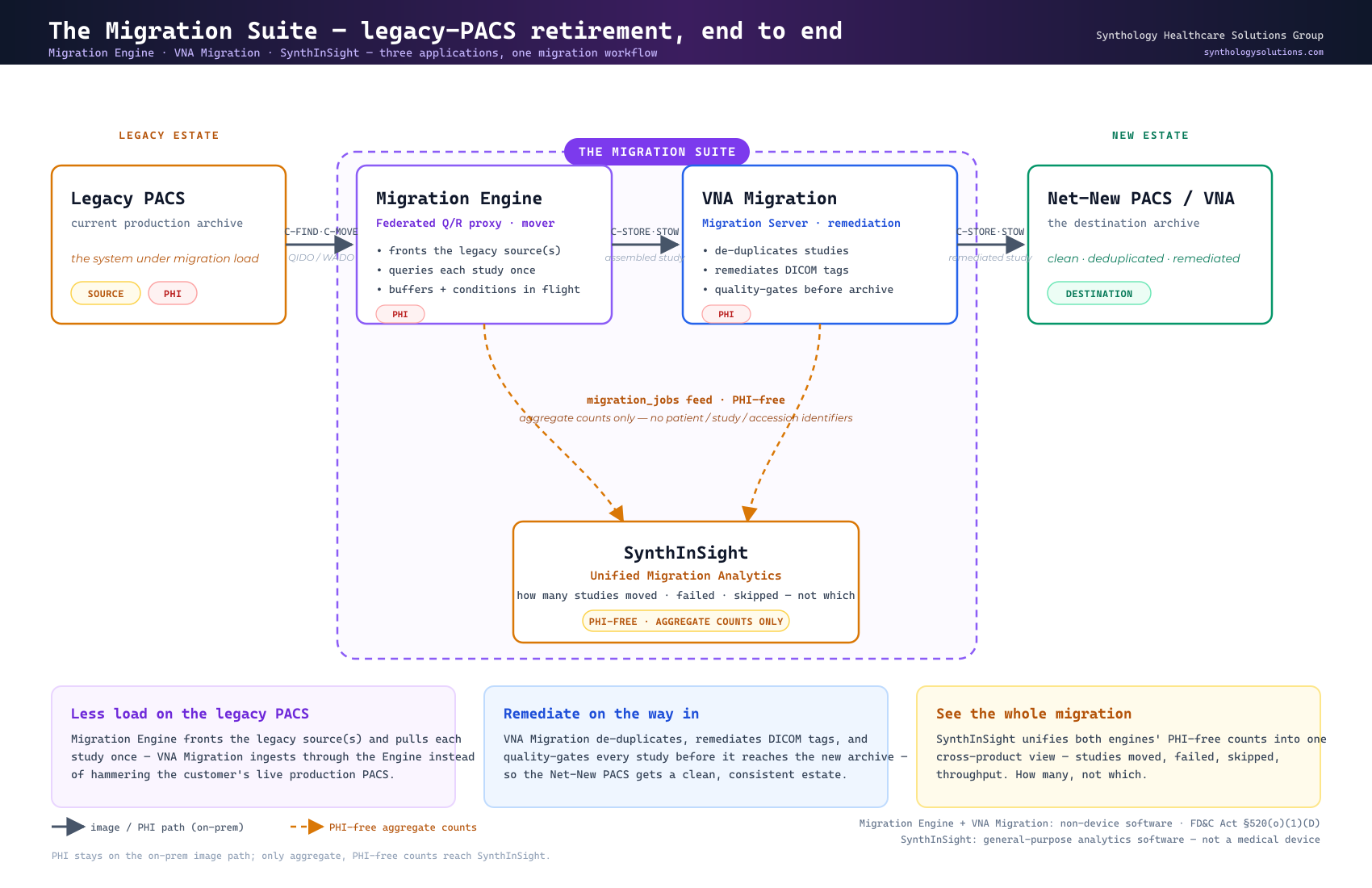

Legacy-PACS retirement, end to end
The three-application migration workflow shown end to end: Migration Engine fronts the Legacy PACS and queries each study once, VNA Migration de-duplicates + remediates + quality-gates every study before it reaches the Net-New PACS, and both engines report PHI-free aggregate counts to SynthInSight for one unified Migration Analytics view. PHI stays on the on-prem image path; only counts reach SynthInSight. Best for legacy-PACS retirement and parallel-run cutover conversations.

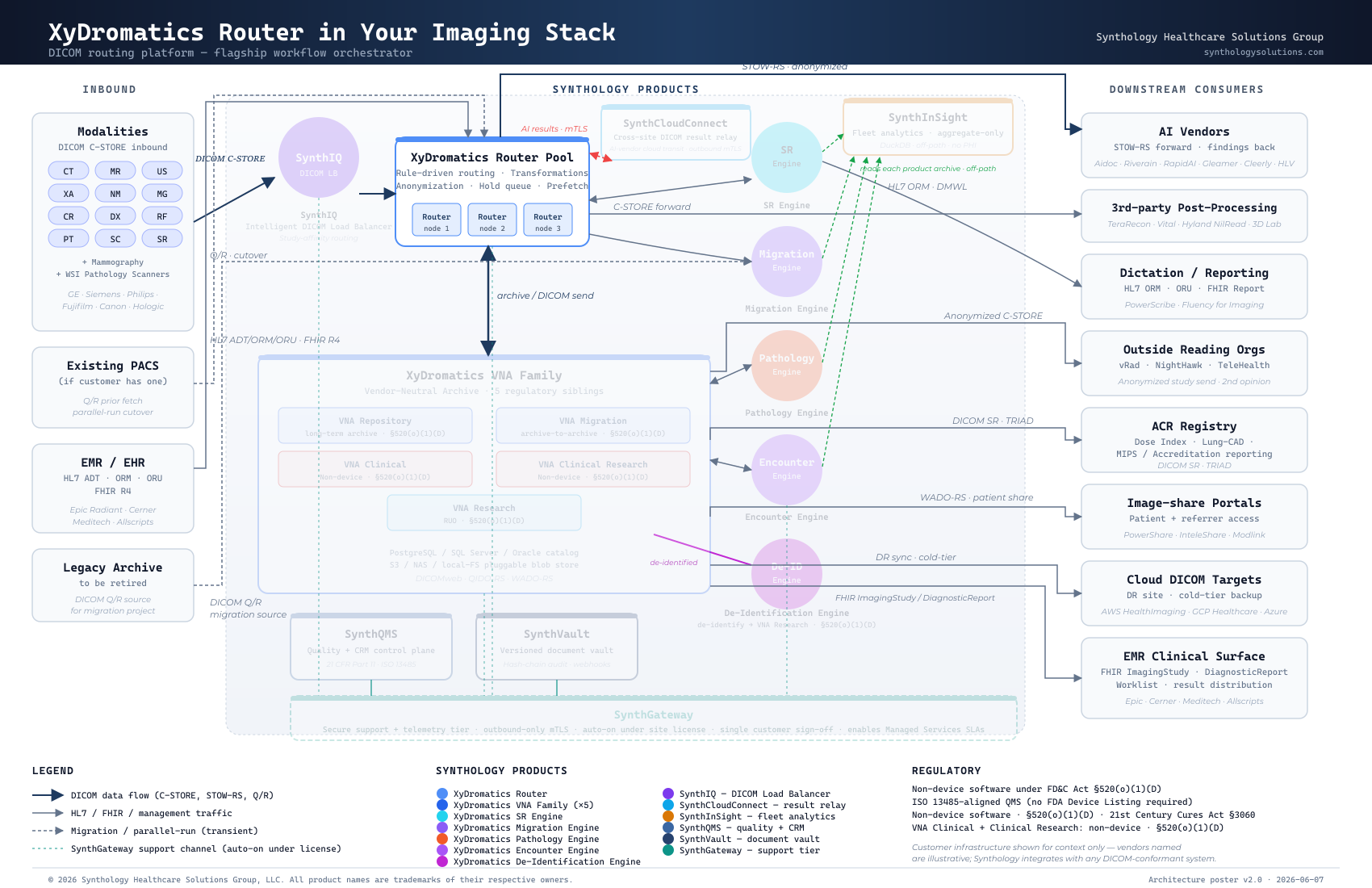

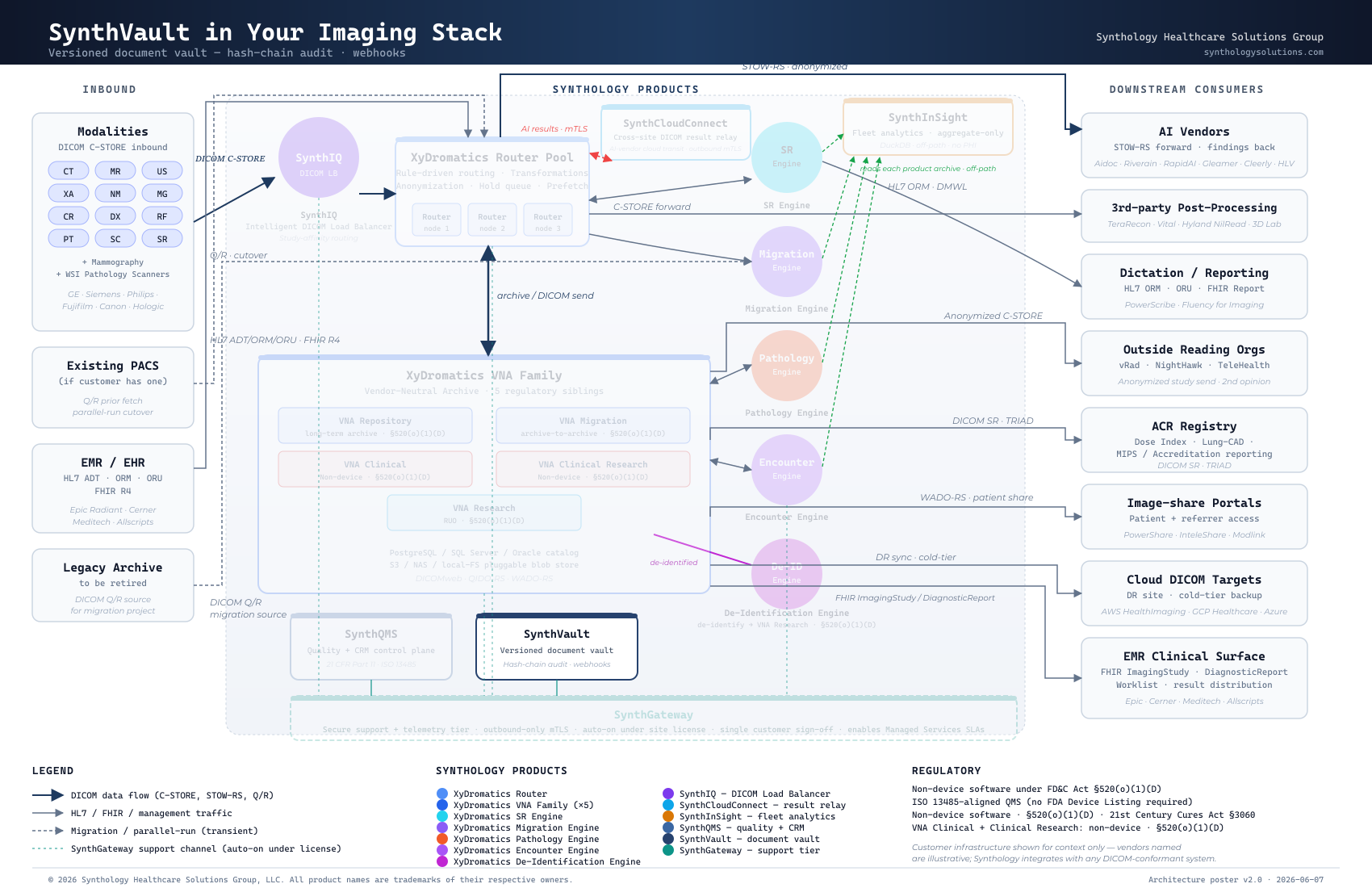

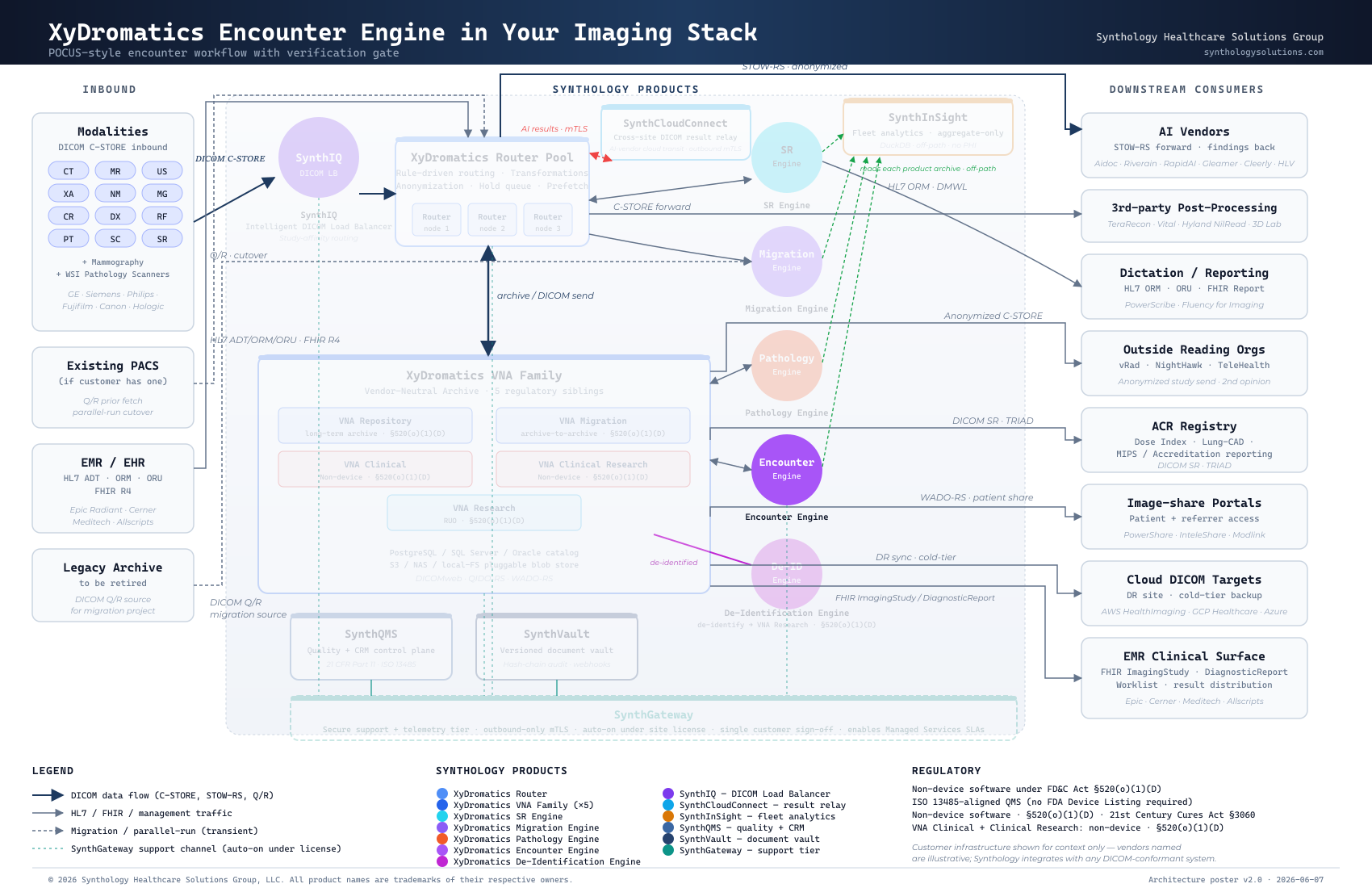

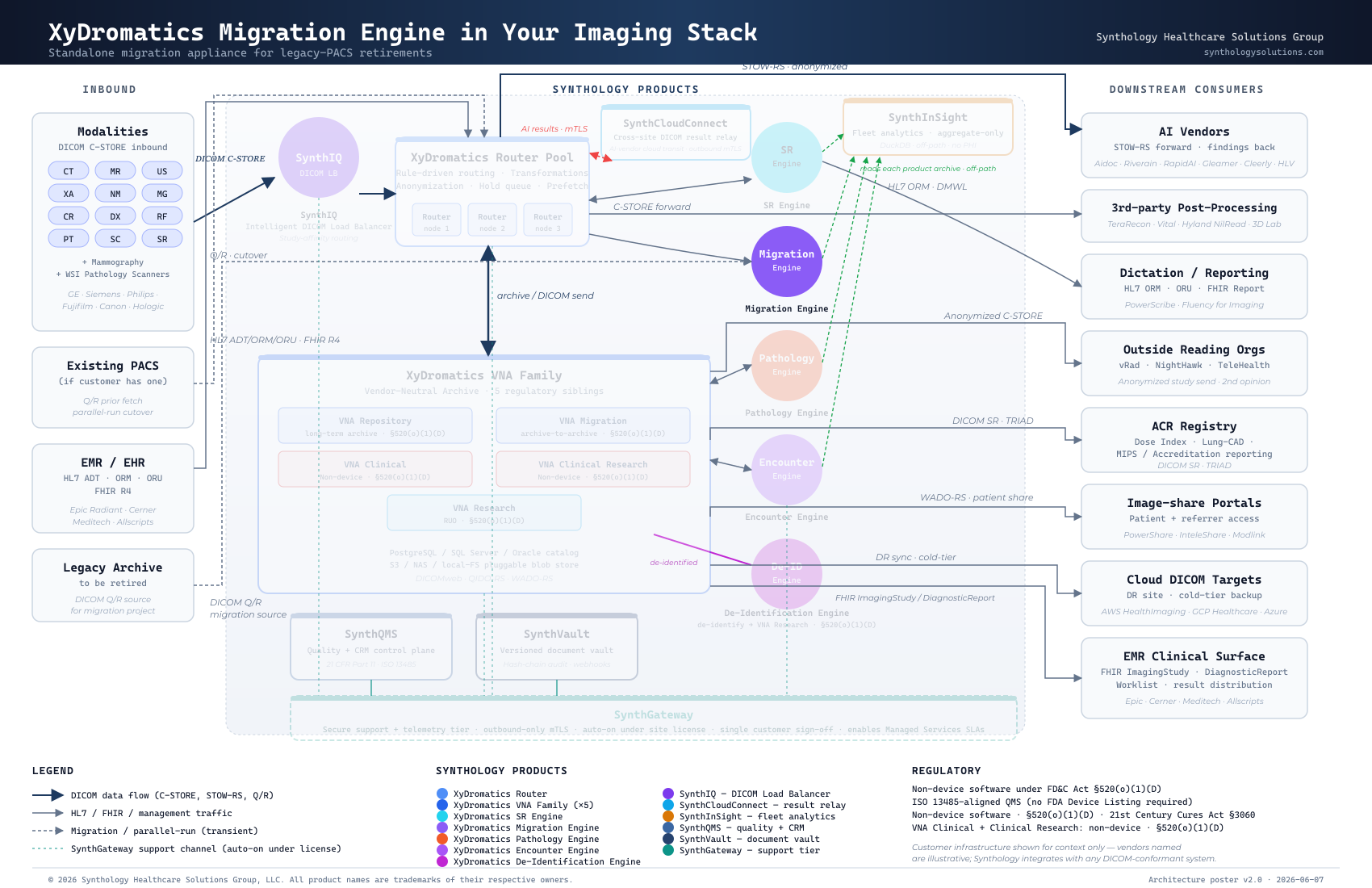

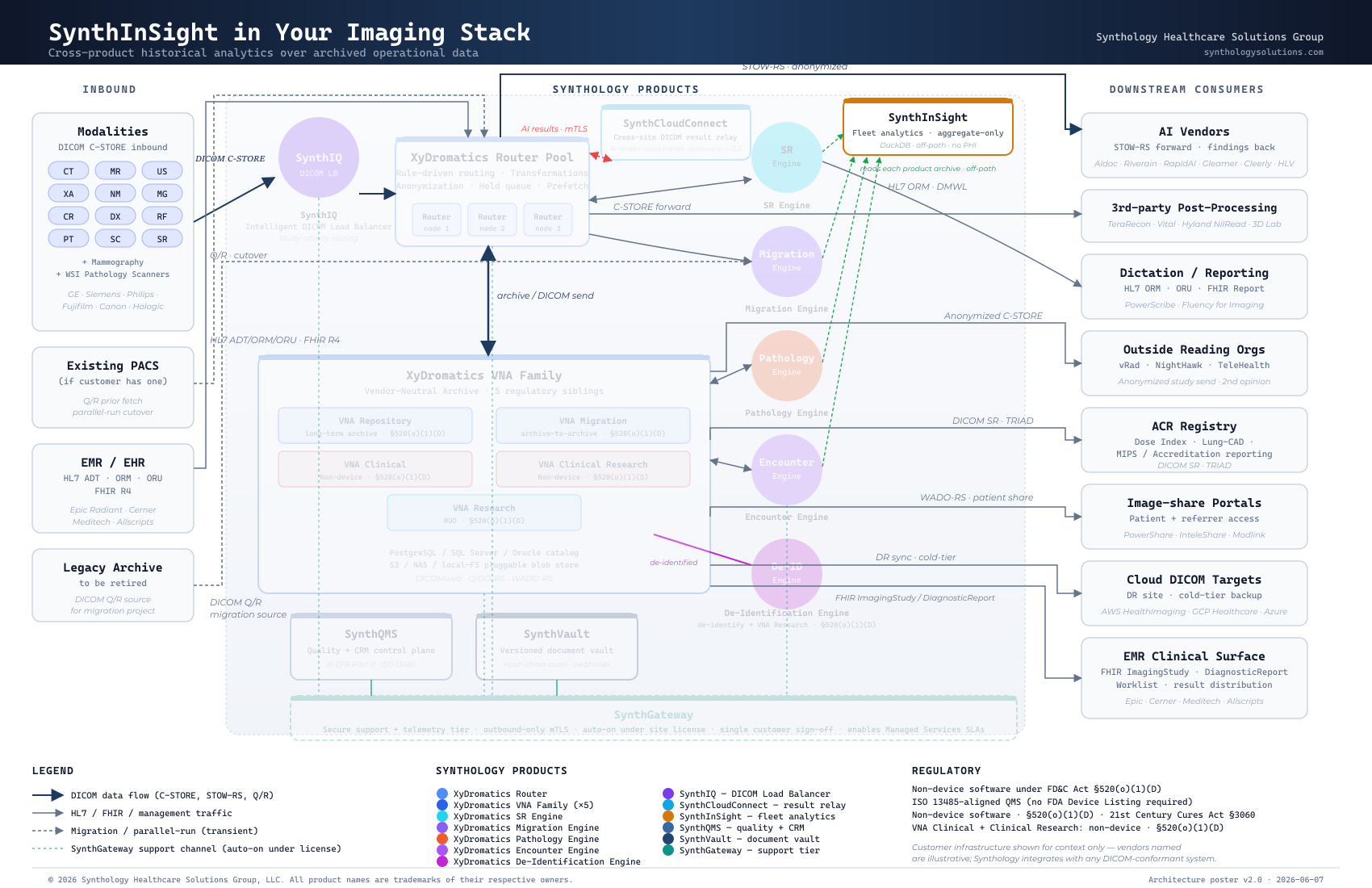

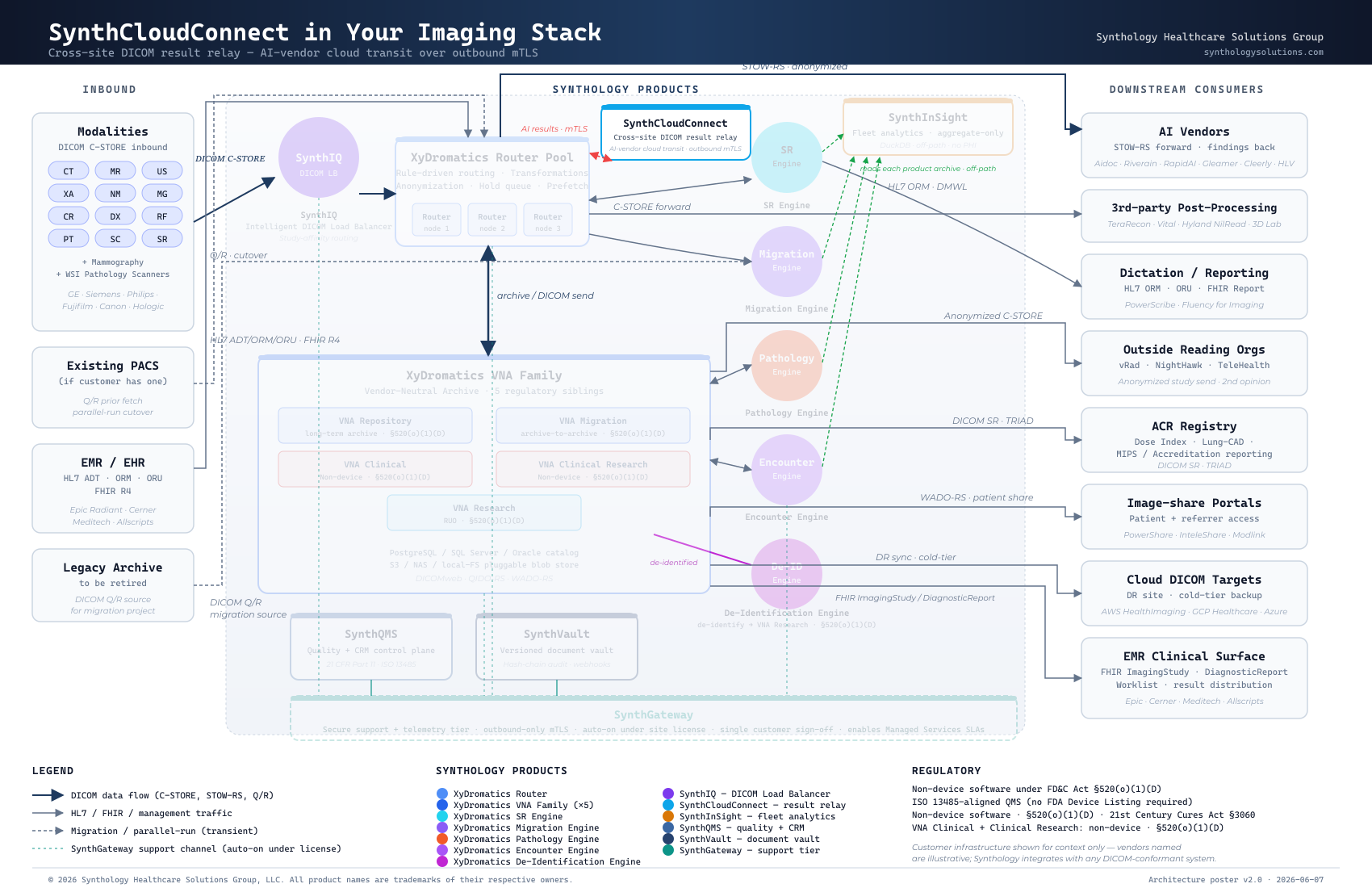

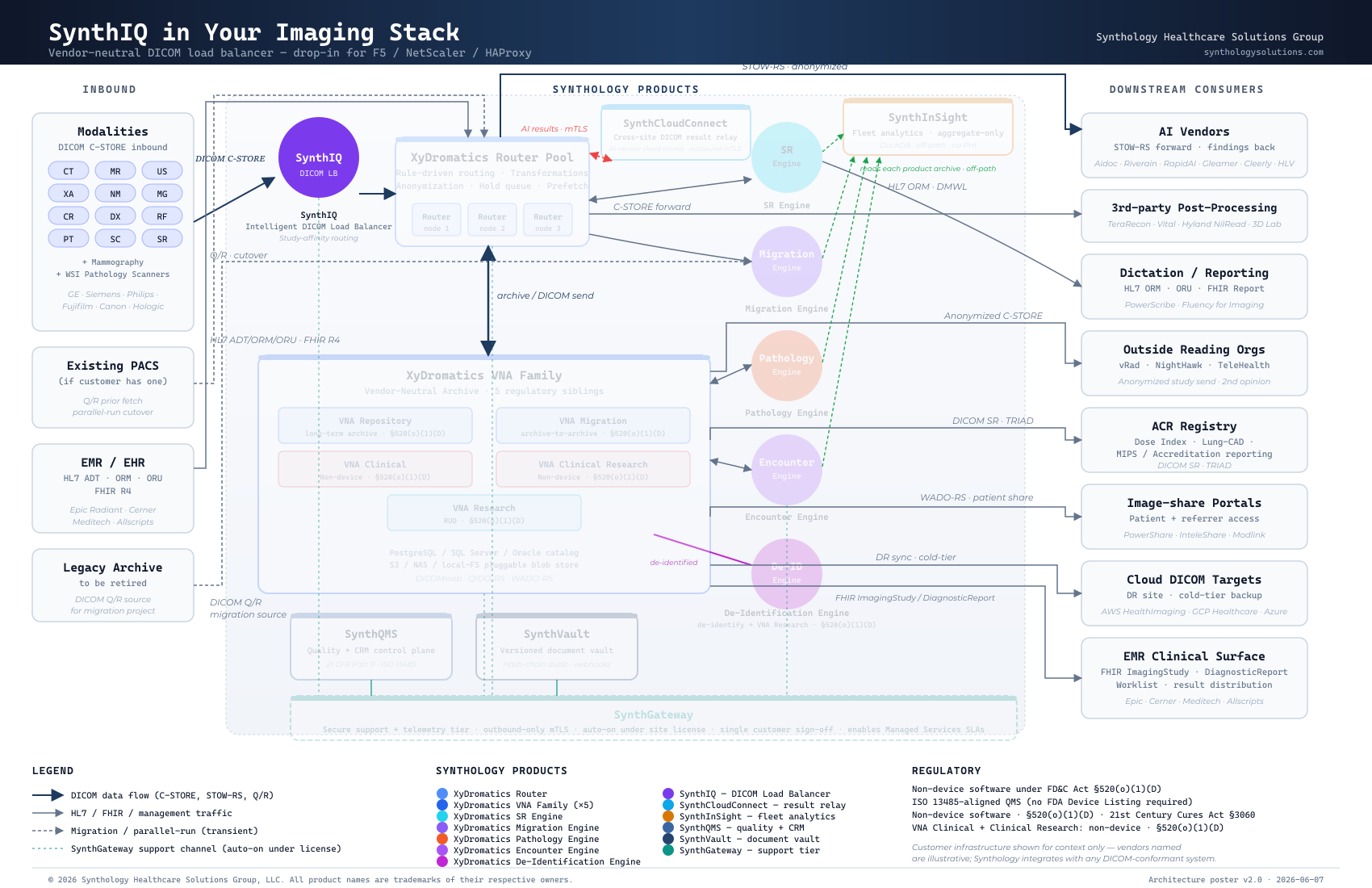

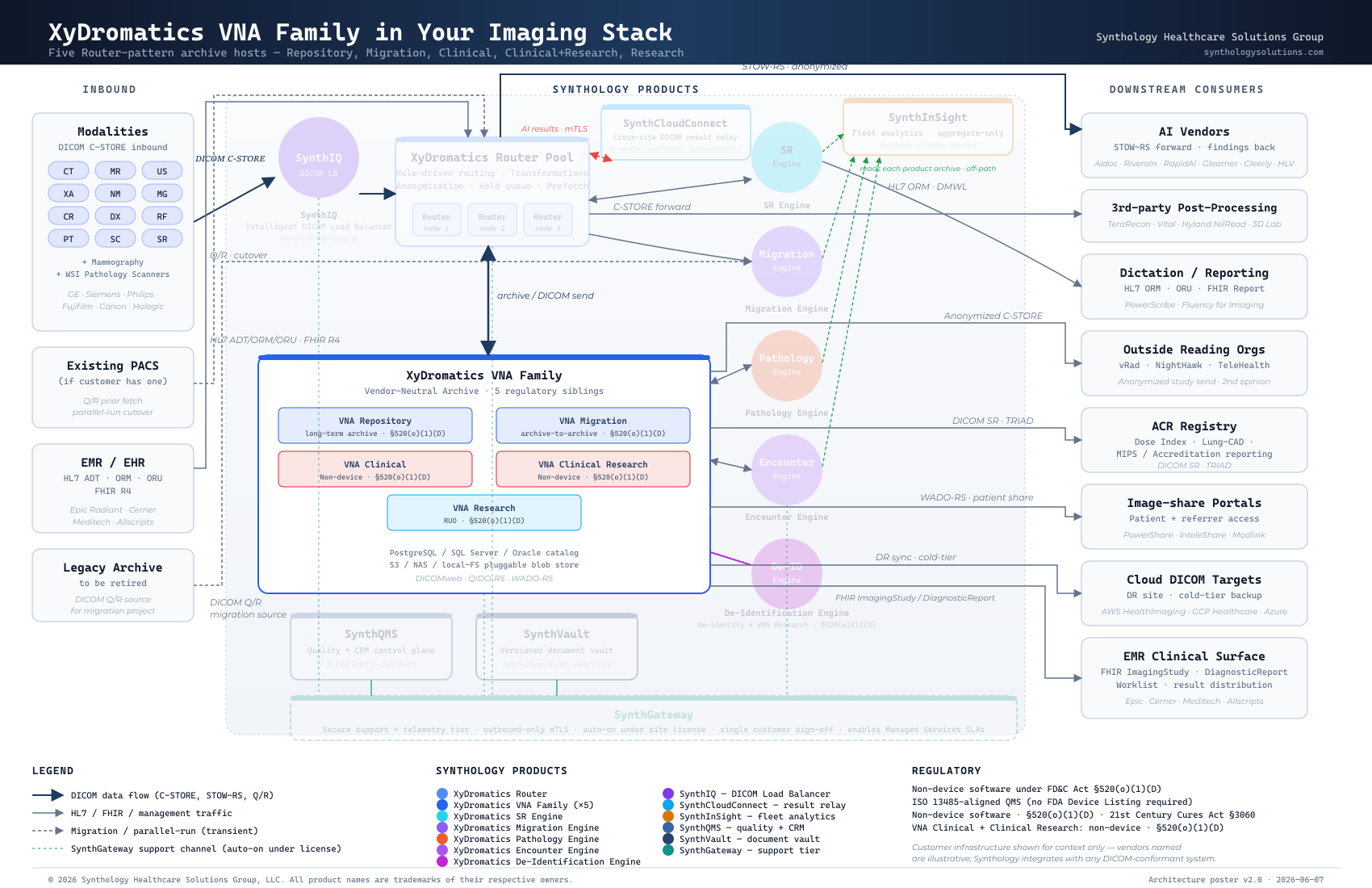

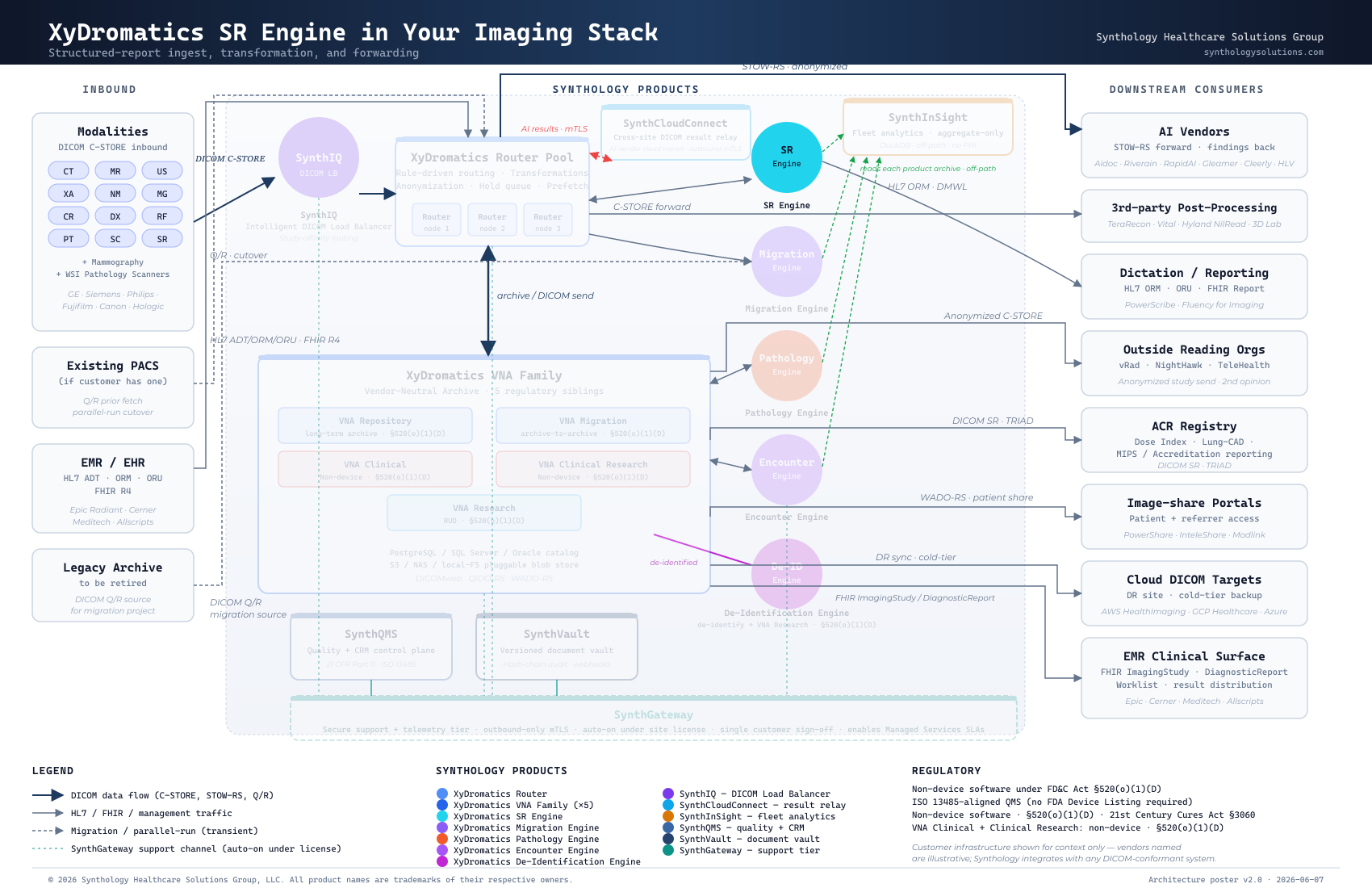

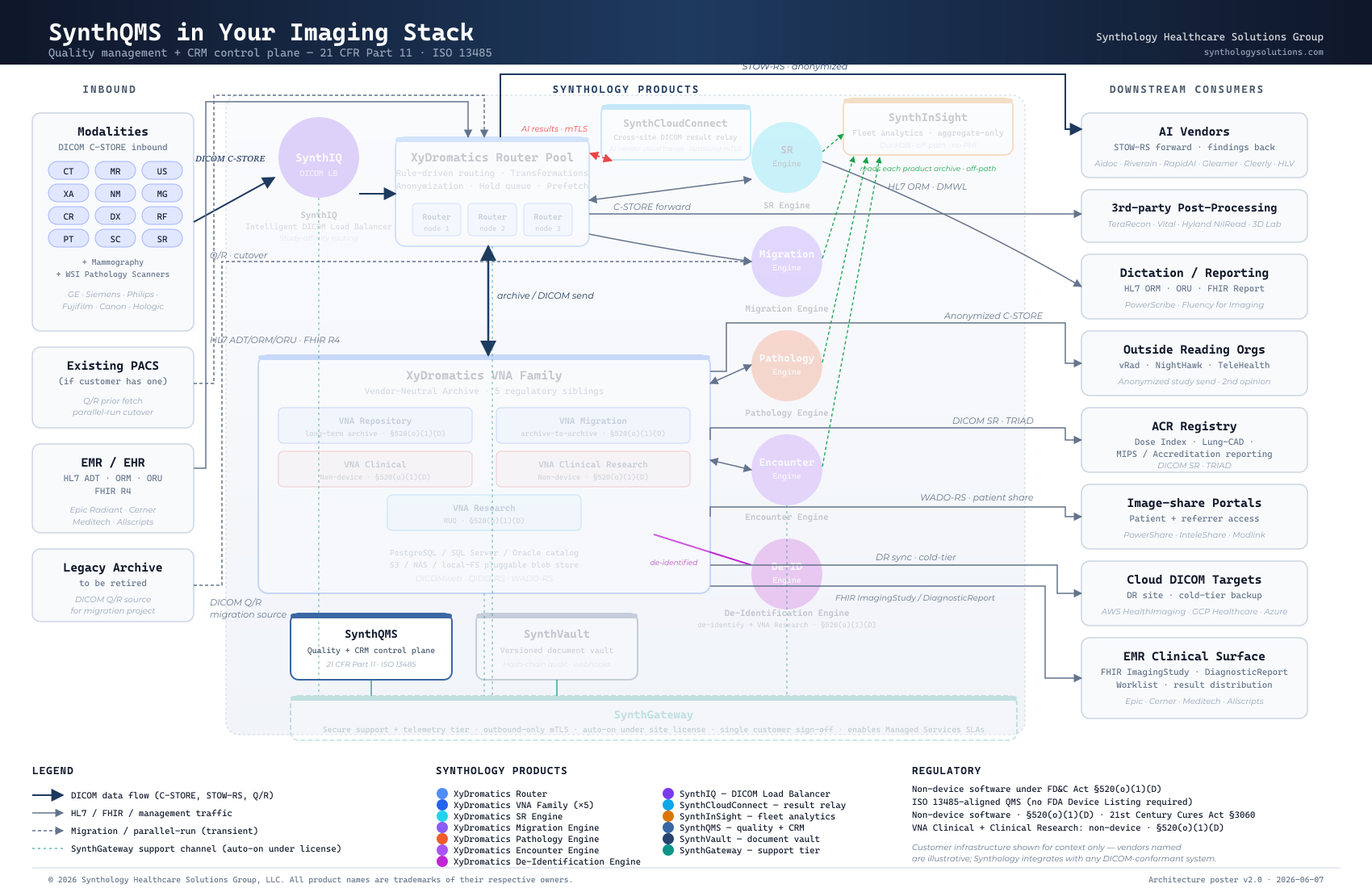

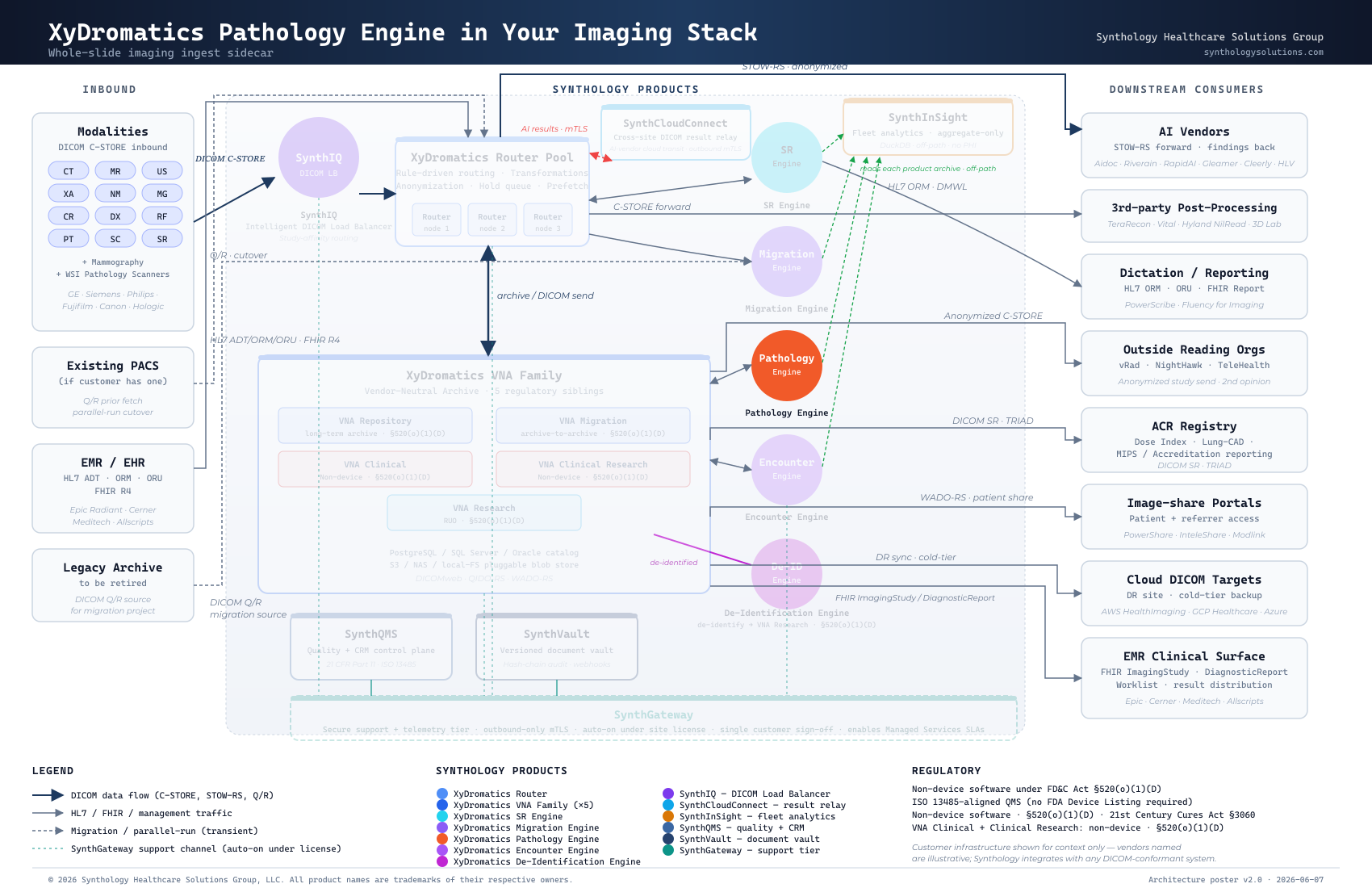

Per-product variants
Each variant uses the same canvas as the master poster but highlights a single product while dimming the surrounding context. Same architecture, focused conversation.

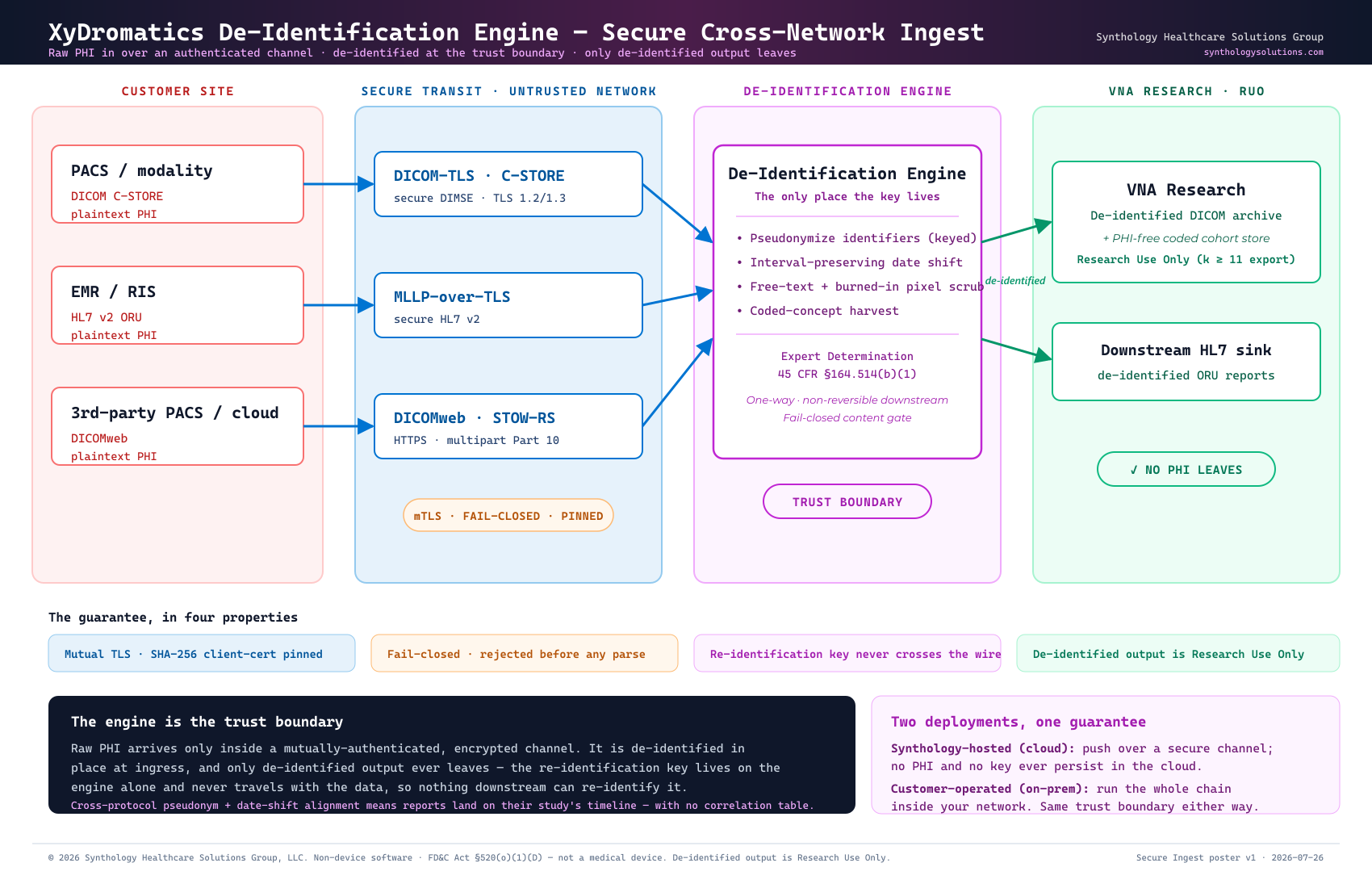

Secure cross-network ingest → de-identify at the trust boundary
The one-way de-identification appliance shown end to end: three mutually-authenticated secure ingest channels (DICOM-TLS C-STORE, MLLP-over-TLS, DICOMweb STOW-RS) into the trust boundary, de-identify at ingress, and forward only de-identified output to VNA Research — the re-identification key never crosses the wire. Best for research-data / AI-egress conversations and security reviews.

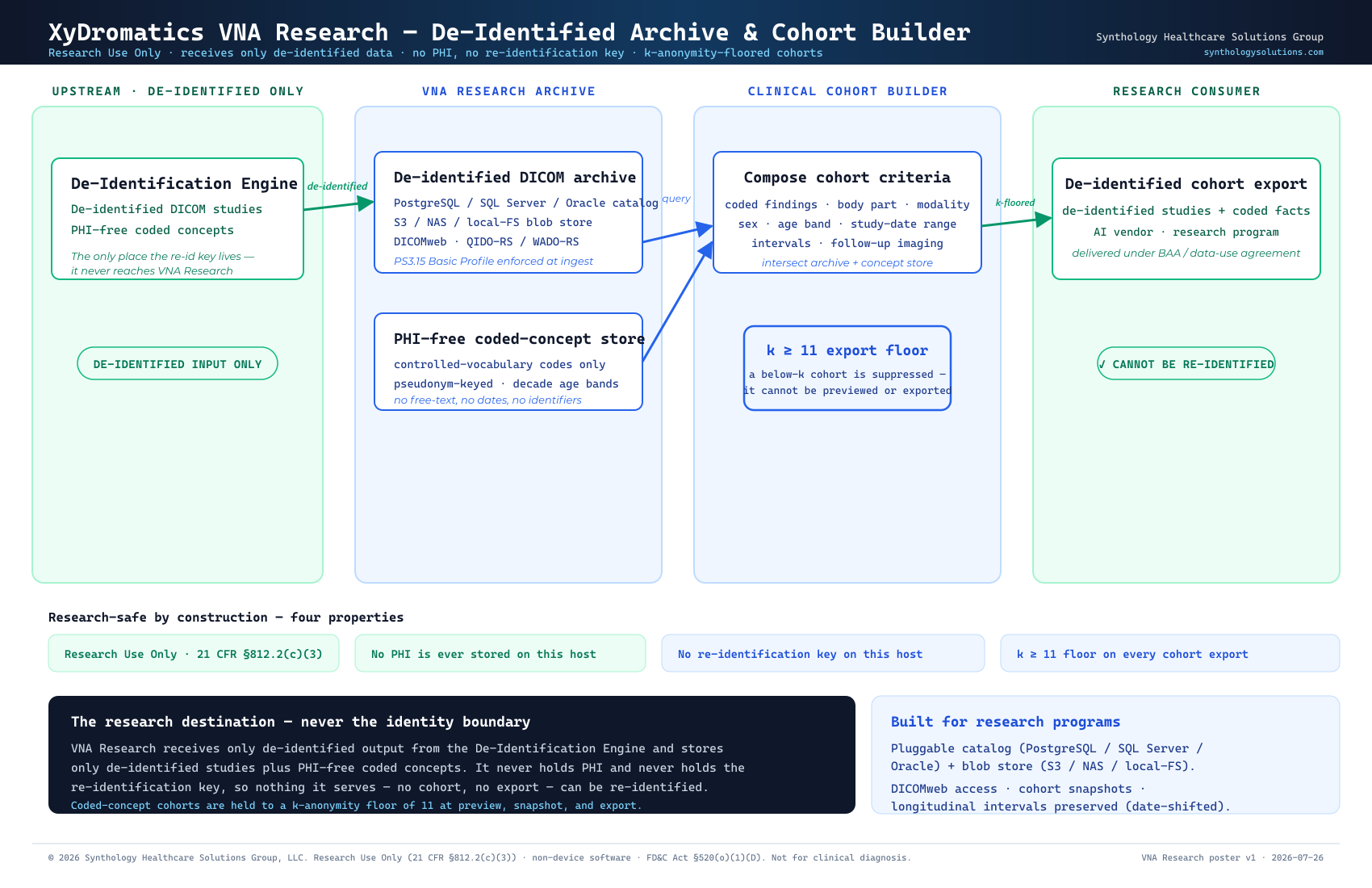

De-identified research archive → k-floored cohort builder
The research destination shown end to end: VNA Research receives only de-identified studies + PHI-free coded concepts from the De-Identification Engine, stores them (de-identified DICOM archive + coded-concept store), and serves the Clinical Cohort Builder under a k ≥ 11 export floor. It never holds PHI or the re-identification key, so no cohort it serves can be re-identified. Research Use Only. Best for research-program and cohort-discovery conversations.
Service & security explainers
Not product-integration diagrams — these explain how a Synthology-operated service works and what controls it, for the questions facility IT and information-security teams actually ask.

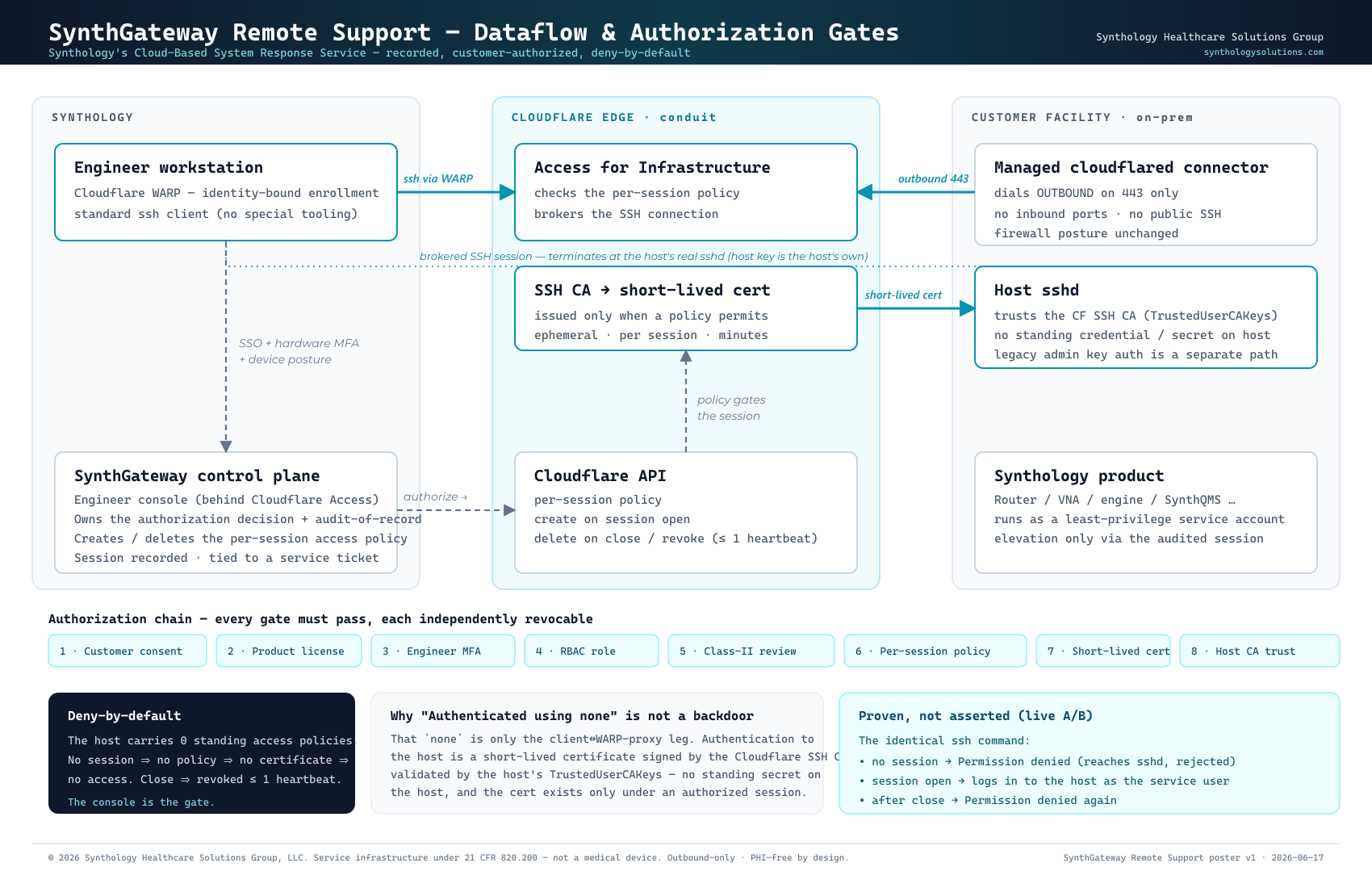

How secure remote support works
End-to-end dataflow + the authorization-gate chain for customer-authorized, recorded remote support: outbound-only (no inbound ports), deny-by-default, short-lived SSH certificates, ≤1-heartbeat revocation. Answers the questions facility IT and information-security teams ask. Best for security reviews and onboarding.
Use cases
Print the master poster (3400 PNG or tabloid PDF) at 11×17 or larger. Sized for foam-board mounting or fabric-backdrop printing.
Drop the 1700 PNG into a slide as the "where we fit" overview. Use a per-product variant when zooming in on a specific solution.
Include in new-customer onboarding kits to orient them to the ecosystem before implementation.
Single reference for "what every Synthology product does." Print and hang at the team workspace.
Send to channel partners + integrators so they can position Synthology in their own customer environments.
Include the tabloid PDF as an attachment to RFP responses so reviewers can quickly orient to your architecture.
Brand-asset note: Posters use the official Synthology product mark imagery on file with USPTO. Don't modify the product logo glyphs or colors when re-using — the brand-system rule is that visual marks match the registered design marks. Posters can be cropped, captioned, or paired with your own talking points — just don't change the marks themselves.
Need a poster scoped to your specific environment — your modality vendors, your PACS, your AI partner mix? We can produce a custom variant for sales engagements on a 1-business-day turnaround.
