XyDromatics™ De-Identification Engine —
raw PHI in, research-safe data out.
The one-way de-identification appliance. Accept studies and
reports across an untrusted network over mutually-authenticated
encrypted channels, apply HIPAA Expert-Determination
de-identification — pseudonymize identifiers, interval-shift
dates, scrub free text and burned-in pixels — and forward
de-identified output, plus PHI-free coded concepts, to VNA
Research. The trust boundary between clinical data and research.
Runs Synthology-hosted in the cloud or customer-operated
on-prem — the same trust boundary either way. The
re-identification key lives only on the engine and never
crosses the wire.
One job, done thoroughly: PHI in, research-safe data out.
Secure cross-network ingest, Expert-Determination
de-identification, a content gate that reaches into free text
and burned-in pixels, HL7 report de-identification, and a
PHI-free coded-concept harvest for research cohorts.

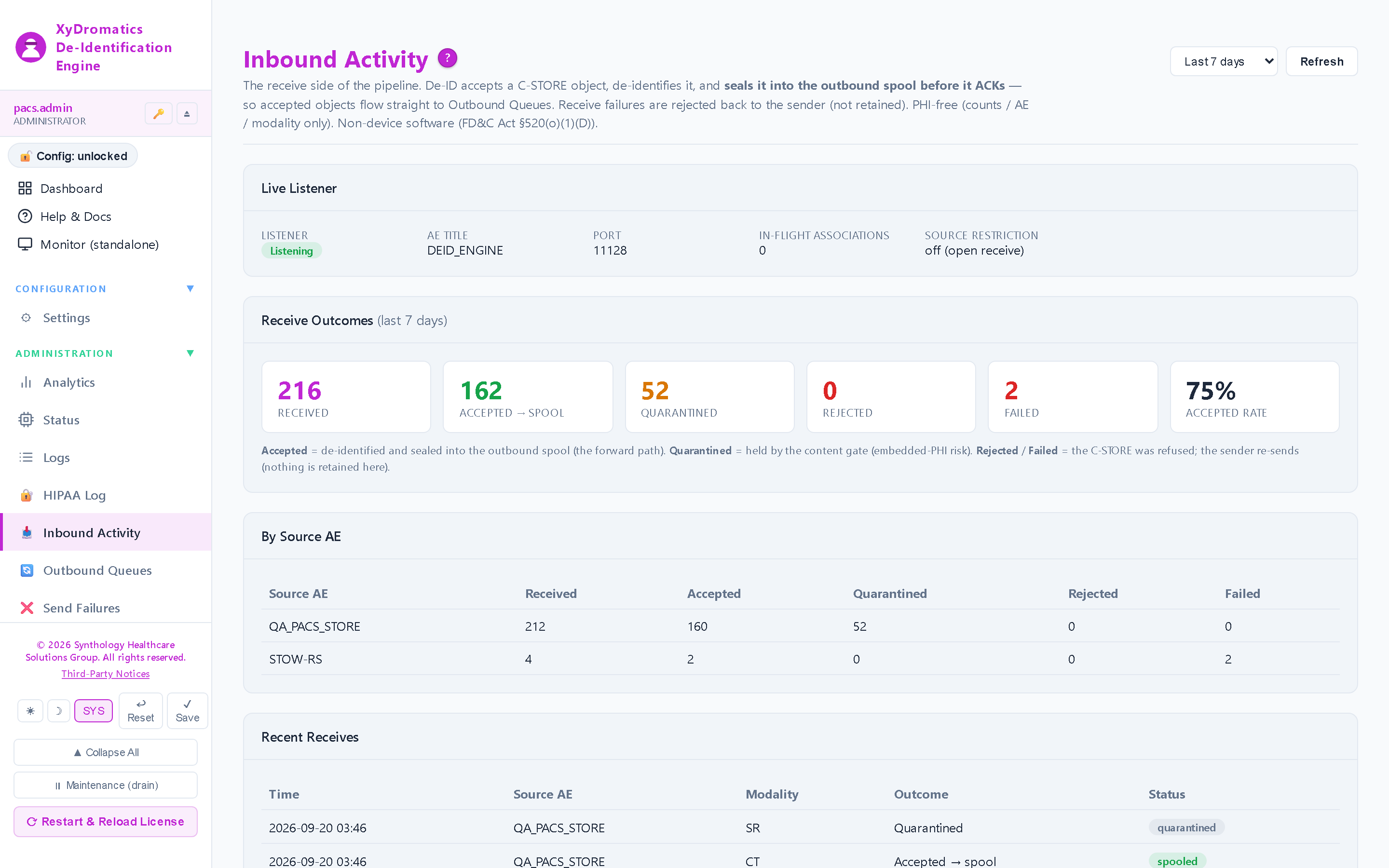

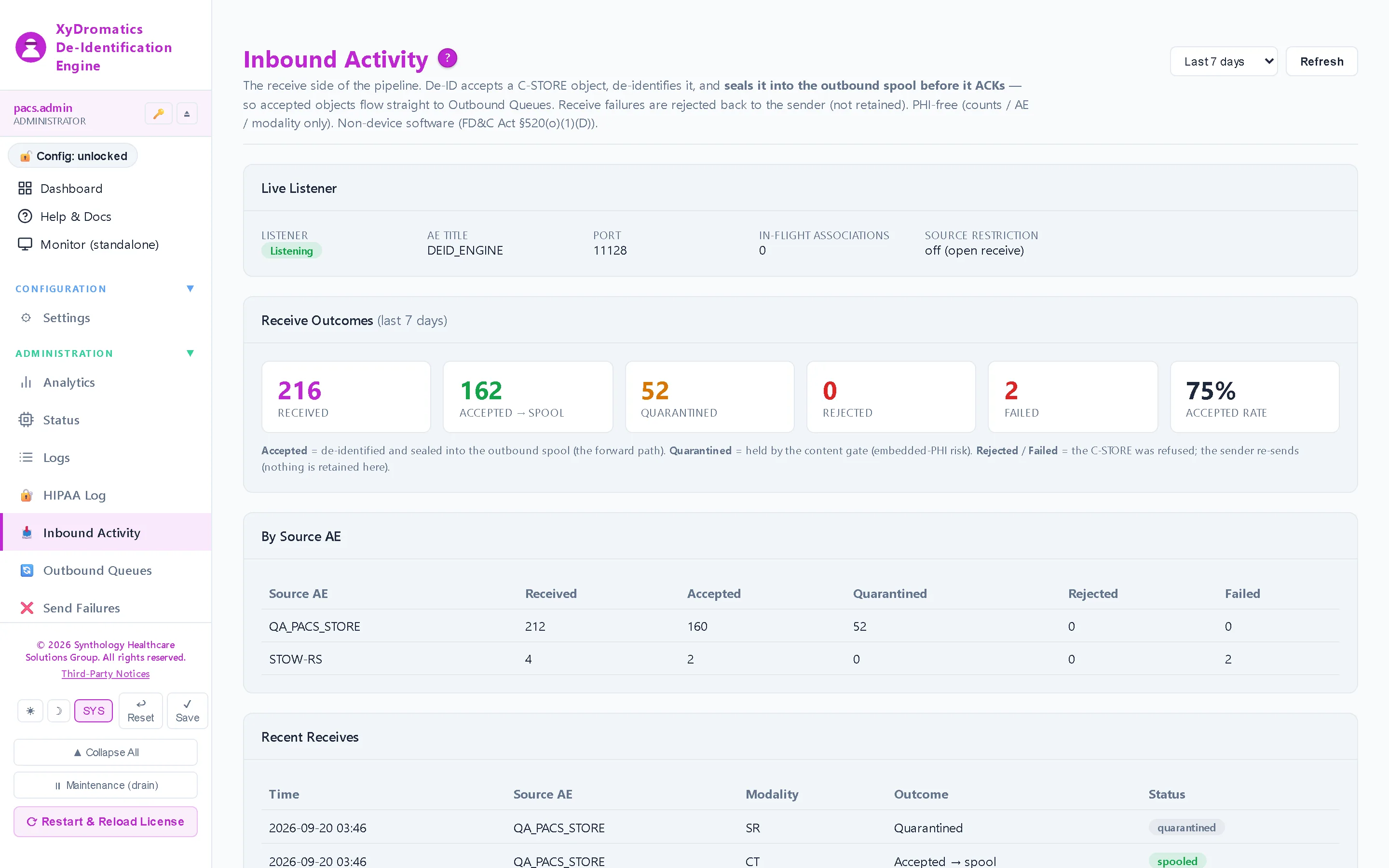

Secure cross-network ingest
Accept studies and reports pushed across an untrusted network, from any source, over an encrypted, mutually-authenticated channel. Every channel is fail-closed — an unauthenticated or unpinned peer is rejected before a single object is read.
DICOM-TLS C-STORE — secure DIMSE for C-STORE-only modalities and legacy PACS (TLS 1.2/1.3)
MLLP-over-TLS — secure HL7 v2 ORU for EMR / RIS report sources
DICOMweb STOW-RS over HTTPS — for cloud and third-party PACS sources
Mutual TLS with SHA-256 client-certificate thumbprint pinning on every channel
Optional sealed bearer token as an alternative to mTLS on the DICOMweb channel
Off by default — on-prem deployments keep plain DIMSE / MLLP inside the trusted network
De-identification core
The de-identification itself, applied under the HIPAA Expert-Determination method. Identity is replaced deterministically so the same patient stays linkable across studies without any correlation table.
Keyed-HMAC pseudonymization of patient and study identifiers (per-site key, never leaves the engine)
Interval-preserving per-patient date shift (DICOM Attribute Modification 113107) — exam intervals and chronological order preserved, absolute dates obscured
VR-aware tag substitution — replacements always fit the target value representation (no silent blanking)
Private / proprietary tag removal (default on)
Deterministic study-UID remapping — the de-identified study carries a stable, re-derivable UID
Optional operator-chosen sequential labeling (licensed; requires a captured §164.514(c) attestation)
Content gate — free text, pixels, documents
Identifiers hide in more than structured tags. The content gate finds and removes PHI in narrative reports, burned-in image pixels, and encapsulated documents — or quarantines what it cannot safely clean.
Free-text SR narrative scrubbing (shared PHI heuristic scrubber)

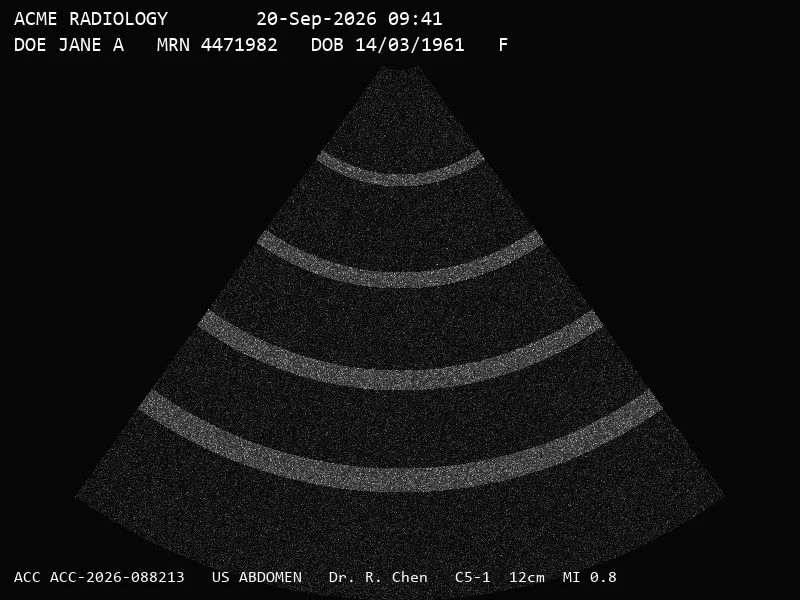

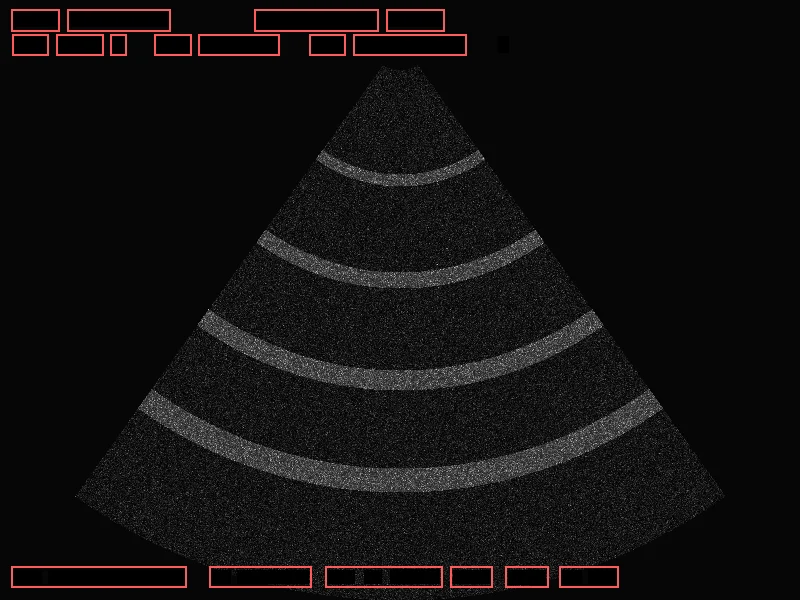

Burned-in pixel OCR redaction — local Tesseract renders the pixels and blacks out detected text (never cloud OCR)
Encapsulated-document handling (PDF rasterize + OCR-redact + rebuild, or text scrub)
Per-lane policy: clean, quarantine, or reject — operator-configurable per content type

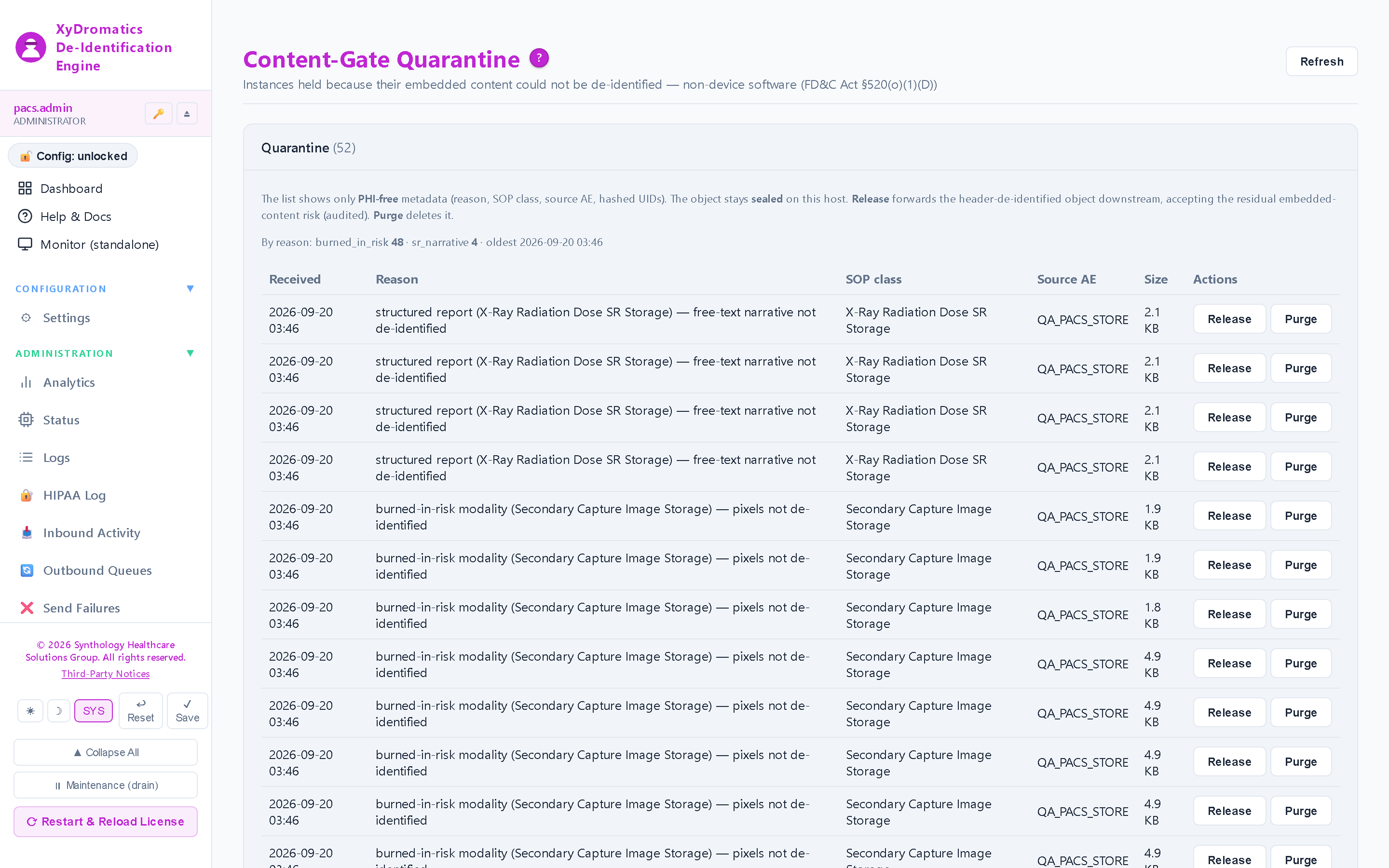

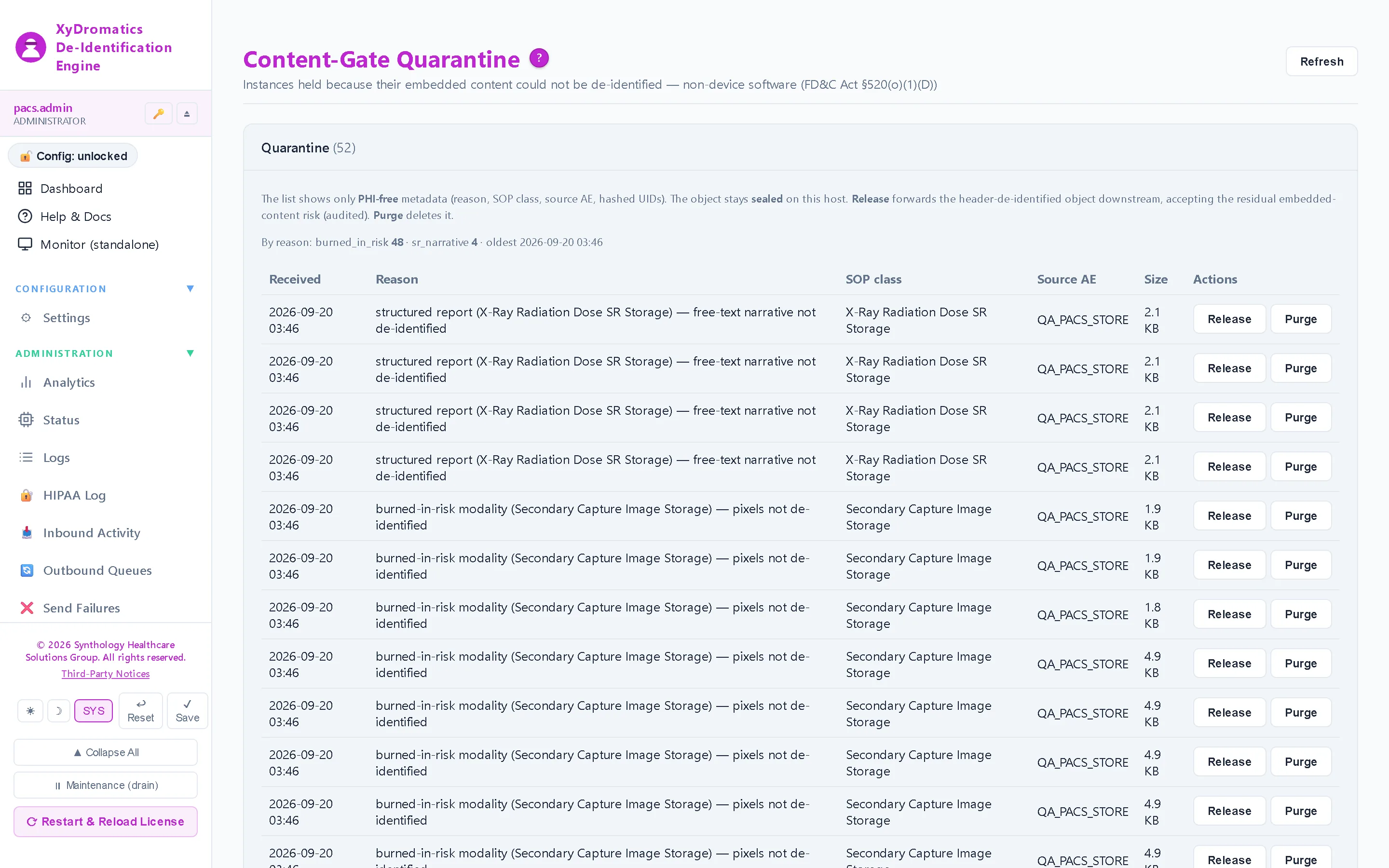

Quarantined objects are sealed on the engine for operator review — never silently forwarded
HL7 v2 ORU de-identification
Reports de-identify with the SAME per-patient pseudonym and date-shift offset as the images, so a de-identified report lands on its de-identified study's timeline with no correlation table and in any arrival order.
Cross-protocol demographic alignment — HL7 and DICOM derive the pseudonym + date shift from the same MRN + site key
OBX narrative scrubbed via the shared free-text PHI scrubber
Store-and-forward with fail-closed NACK — the sender holds any message the engine could not fully de-identify and forward
Forwards the de-identified report to a downstream HL7 research sink
Coded-concept harvest → research cohorts
Beyond de-identified images, the engine can harvest standards-coded clinical concepts from report-bearing objects into a PHI-free, pseudonym-keyed cohort store — the input to a Clinical Cohort Builder. Opt-in and gated.
PHI-free coded-concept batches keyed by the study pseudonym
Two-person export control — a licensed add-on (deid_cohort_export) AND a current §164.514(b)(1) Expert-Determination attestation
k-anonymity floor enforced on cohort export
Fail-open harvest: a harvest or ingest error never affects the de-identified image forward

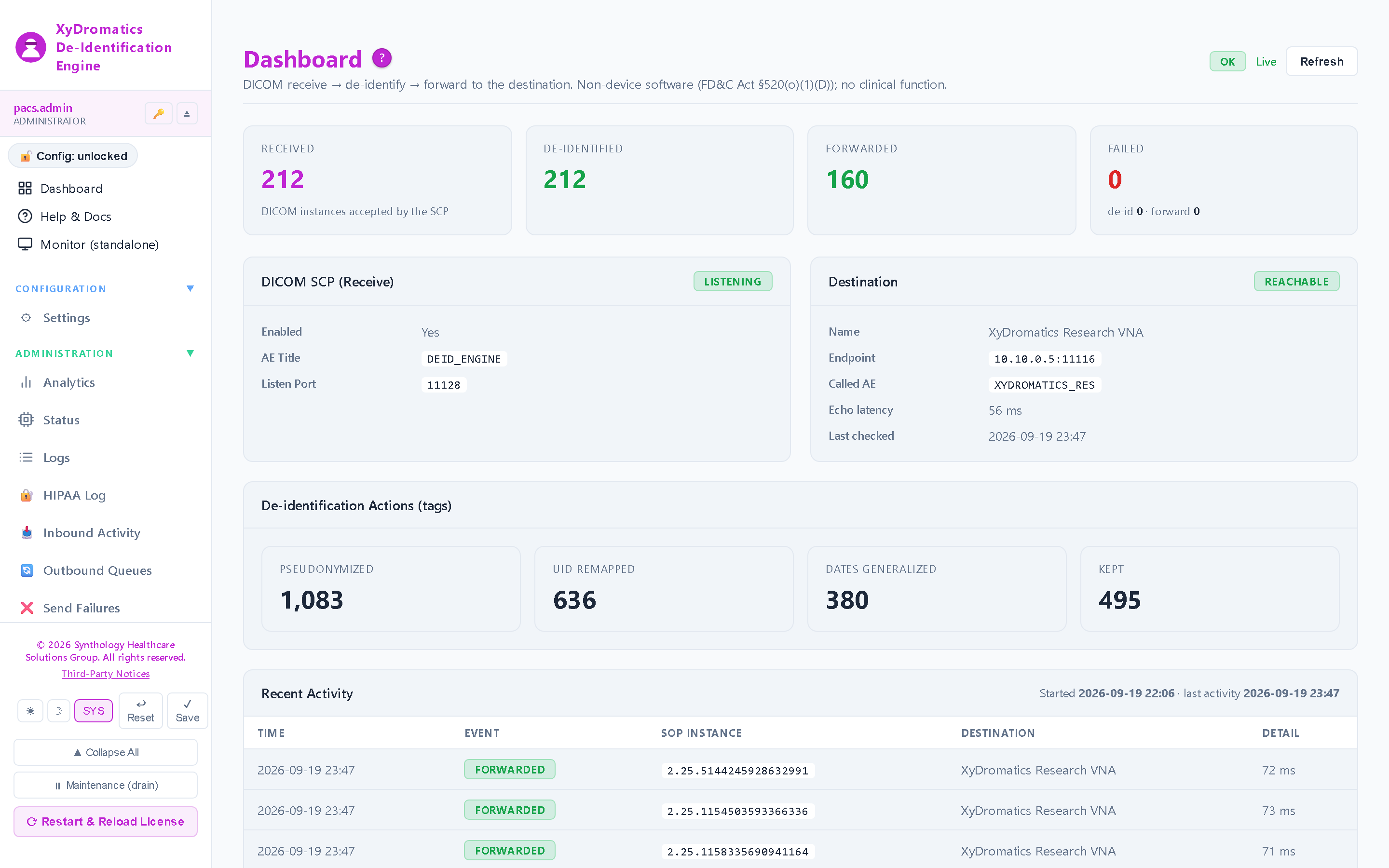

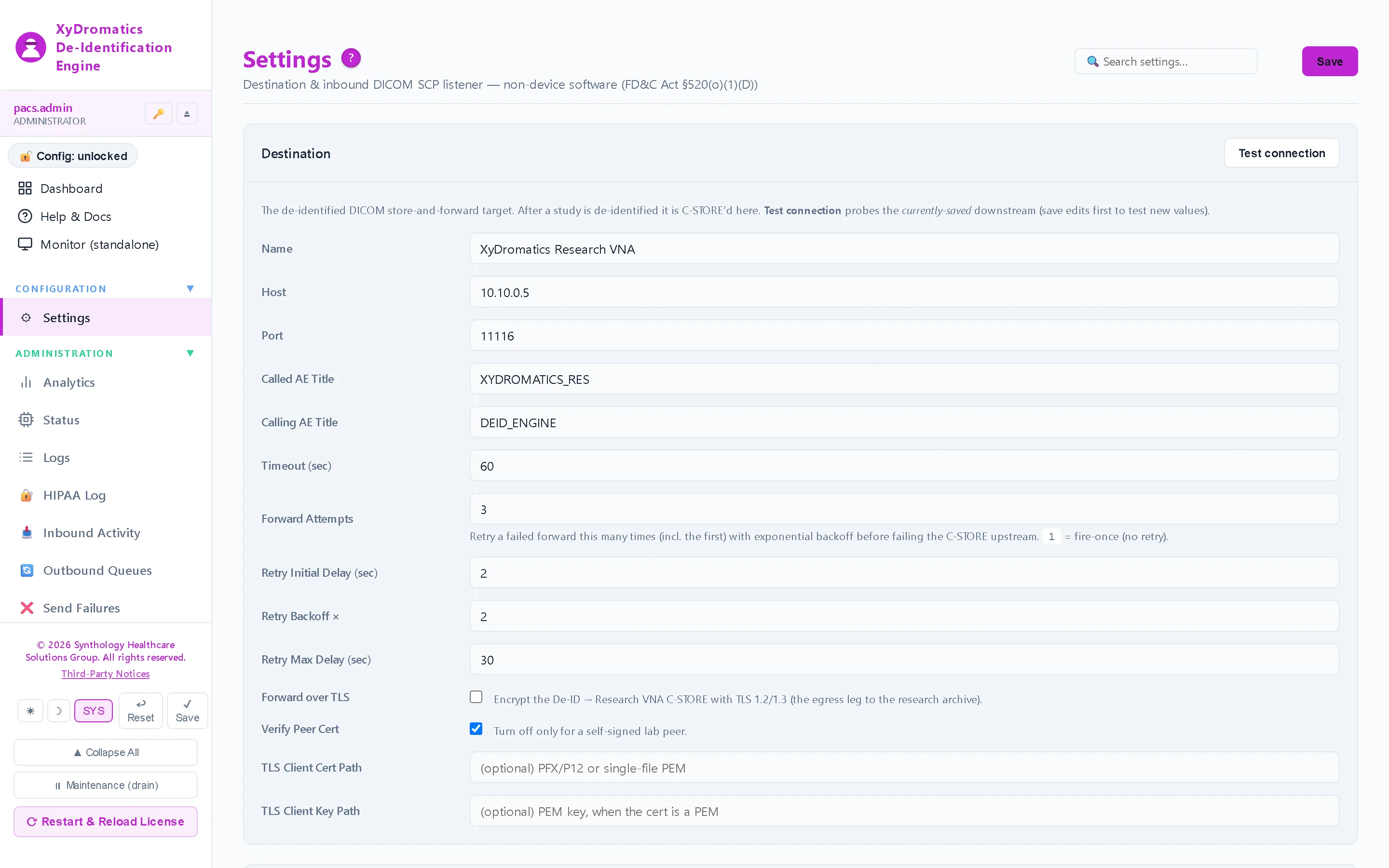

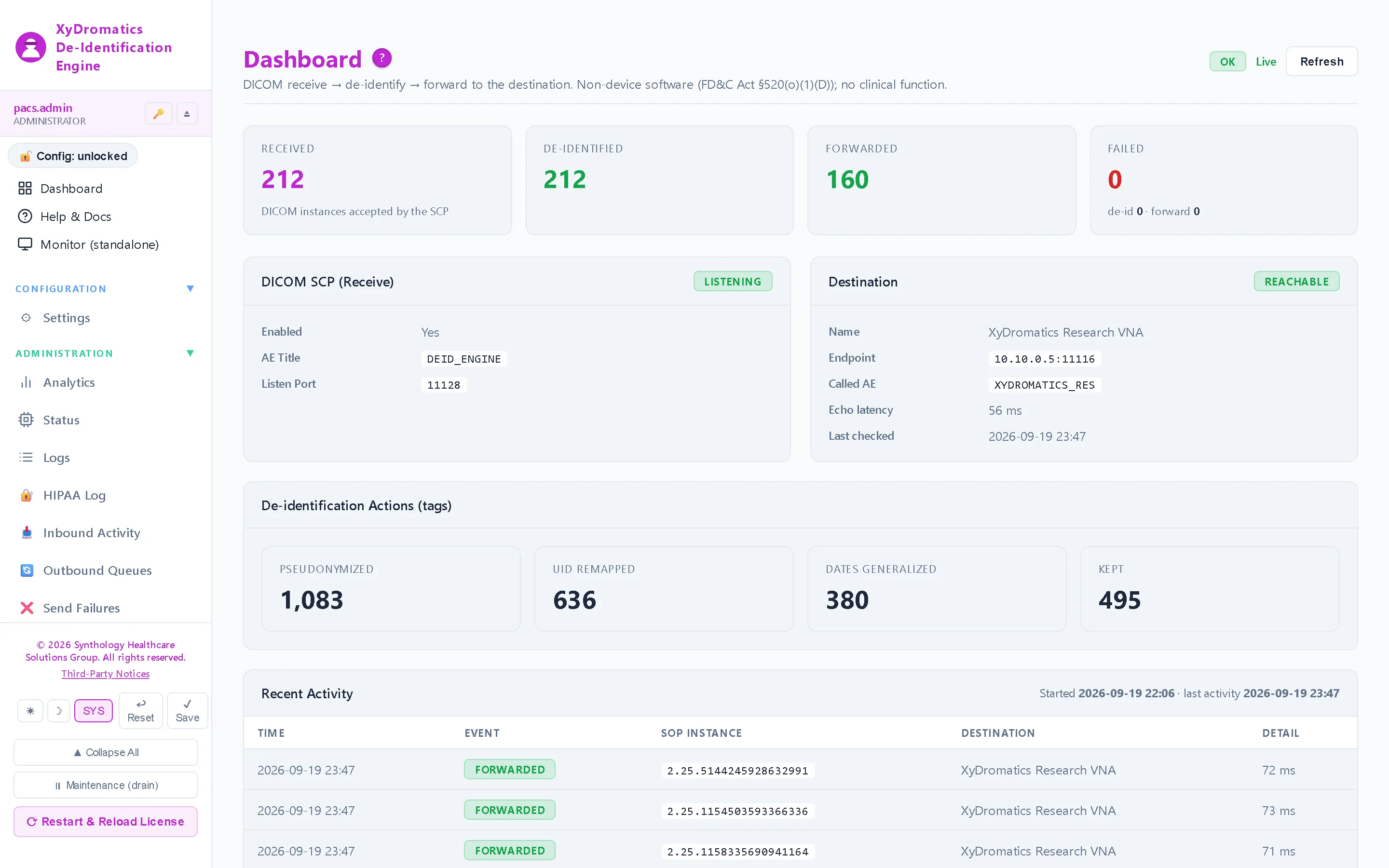

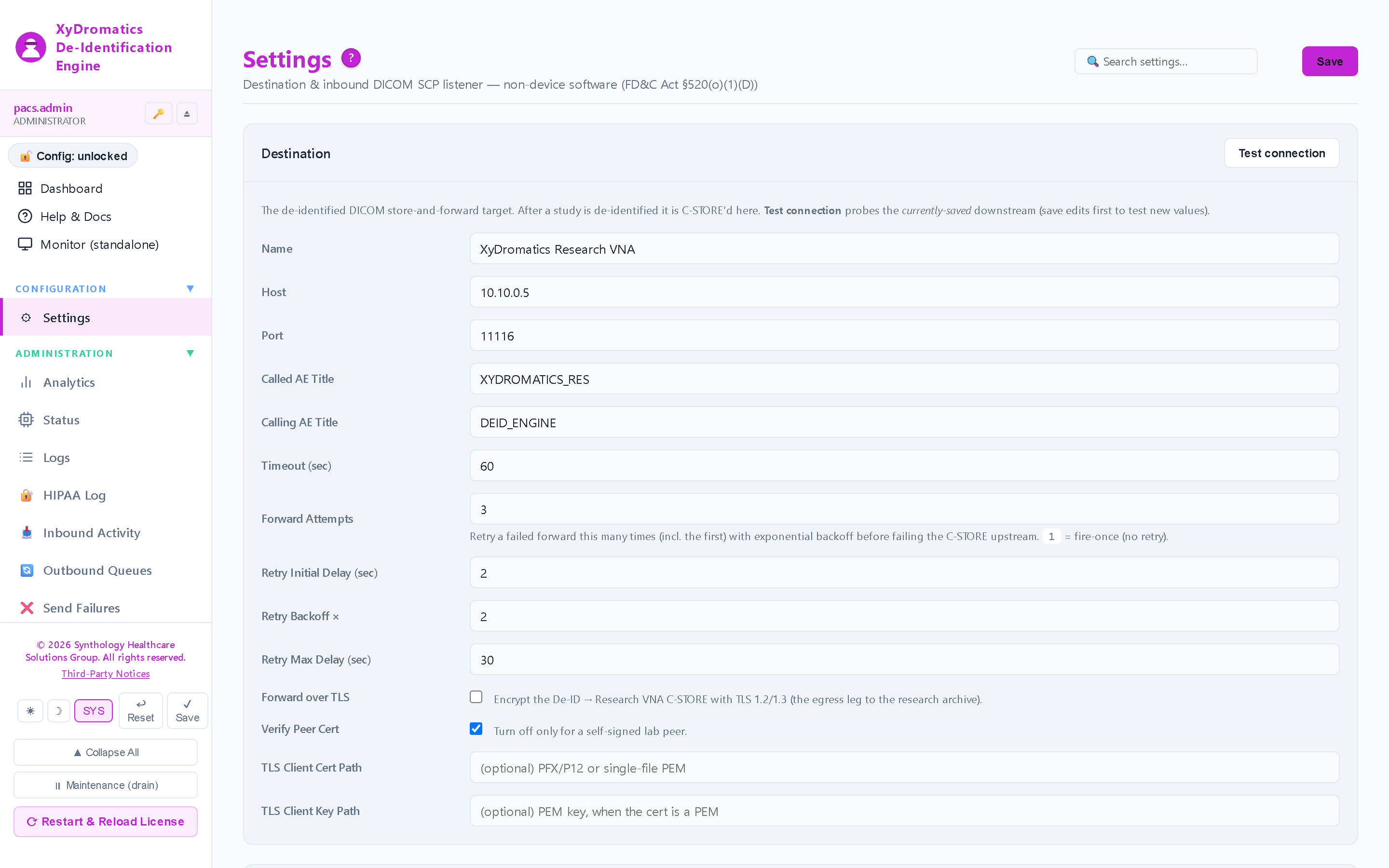

Operations, durability & administration
A production appliance: durable store-and-forward, sealed configuration and secrets, PHI-free health telemetry, and the shared administration surface used across the fleet.
Durable outbound spool — store-then-drain so a downstream outage or restart never loses an instance
Quarantine + dead-letter queues with operator review
Whole-configuration encryption at rest (SYNTHIMG envelope; reversible secrets sealed, never emitted)
Tamper-evident, hash-chained HIPAA audit log with configurable retention
Web admin UI with shared sidebar shell + role-based access control
PHI-free /api/health telemetry (queue depth, disk, channel posture) for pool + gateway monitoring
Dataflow
The engine is the trust boundary.
Raw PHI arrives from the customer site over an encrypted,
mutually-authenticated channel — DICOM-TLS C-STORE,
MLLP-over-TLS, or DICOMweb STOW-RS. The engine de-identifies at
the boundary and forwards only de-identified output to VNA
Research. It occupies the same position whether Synthology hosts
it in the cloud or the customer runs it on-prem.
Use cases
Five deployment patterns.
Cloud-hosted or on-prem, image or report, external-vendor
shielding or research-cohort building — the engine is the
single de-identification point for all of them.
Pattern 1
Synthology-hosted research ingest (cloud)
A customer sends studies to a Synthology-hosted De-Identification Engine across the internet. Raw PHI crosses only inside a mutually-authenticated, encrypted channel; nothing re-identifiable is ever stored in the cloud.
Flow
1Customer PACS / modality sends over DICOM-TLS C-STORE (or DICOMweb STOW-RS) with a pinned client cert
2The engine authenticates the peer, decrypts in memory, and de-identifies at the trust boundary
3Identifiers pseudonymized, dates interval-shifted, free text + burned-in pixels scrubbed
4De-identified study forwarded to VNA Research; PHI-free coded concepts harvested to the cohort store
5No PHI and no re-identification key persist in the cloud — only de-identified output
Pattern 2
On-prem de-identification appliance
The customer runs the whole chain inside their own network. The engine is the internal gate between clinical archives and a research environment — TLS optional, since traffic never leaves the trusted network.
Flow
1Clinical PACS / Router forwards studies to the on-prem engine over plain C-STORE (inside the trusted LAN)
2The engine de-identifies under the site's Expert-Determination policy
3De-identified output lands in an on-prem VNA Research archive
4Coded concepts populate the local Clinical Cohort Builder
5The re-identification key stays on the customer's engine; researchers see only de-identified data
Pattern 3
AI-vendor / external-reader PHI shielding
Send de-identified studies to an AI vendor or outside reading service that is not in BAA scope. They receive only pseudonymized data; the mapping stays on the engine.
Flow
1Source study de-identified with keyed-HMAC pseudonymization + date shift
2De-identified study sent to the AI vendor / external reader
3The vendor analyzes and returns findings tagged with the same pseudonyms
4The re-identification mapping — held only on the engine — links findings back to the right patient
5The vendor never received PHI; the clinical workflow still benefits from the findings
Pattern 4
Research report de-identification (HL7)
ORU reports from the EMR / RIS de-identify alongside the images and land on the matching de-identified study's timeline, so a research reporting environment has both the pixels and the narrative — with no PHI.
Flow
1EMR / RIS emits ORU^R01 over MLLP-over-TLS
2The engine de-identifies PID / OBR / OBX / PV1 / ORC and scrubs the OBX narrative
3HL7 and DICOM derive the same pseudonym + date shift from the same MRN + site key
4The de-identified report is store-and-forwarded to the research HL7 sink (fail-closed on any failure)
5Report and study align on the timeline with no correlation table
Pattern 5
Clinical-cohort building for research
A research program needs cohorts defined by coded clinical concepts, not free text. The engine harvests standards-coded concepts into a PHI-free, pseudonym-keyed store that a Clinical Cohort Builder queries under k-anonymity.
Flow
1Harvest lane extracts standards-coded concepts from pre-scrub report objects (opt-in, licensed)
2PHI-free coded batches keyed by the study pseudonym are posted to VNA Research
4Export is gated: the deid_cohort_export add-on AND a current §164.514(b)(1) Expert-Determination attestation, both required
5Cohorts export under an enforced k-anonymity floor
Integration points
Sources in, de-identified output out.
Sources (senders)
Modalities + PACS over DICOM C-STORE (plain on-prem, or DICOM-TLS across a network)
EMR / RIS over HL7 v2 ORU (plain MLLP, or MLLP-over-TLS)
Third-party PACS / cloud over DICOMweb STOW-RS (mTLS or sealed bearer)
XyDromatics Router — can route studies to the engine for de-identification
Destinations (de-identified output)
XyDromatics VNA Research — de-identified DICOM archive (Research-Use-Only)
VNA Research coded-concept cohort store (PHI-free) — the Clinical Cohort Builder input
Downstream HL7 research reporting sink (de-identified ORU)
AI vendors / external reading services — pseudonymized studies only
Cross-product orchestration
Shared per-site encryption key — consistent pseudonyms across Router, VNA family, and the engine
Shared DICOM SCP library — the same C-STORE receive path used fleet-wide (now with optional DICOM-TLS)
Unified key-escrow (IKeyEscrow) — every reversible secret sealed under one customer master
Synthology QMS — change control on de-identification policy
Identity, audit, observability
OIDC / SAML + Active Directory / Azure AD for the web admin UI
Hash-chained, tamper-evident HIPAA audit log
PHI-free health telemetry (SynthIQ pool + SynthGateway console)
Per-peer, per-channel audit of every accepted association
System requirements & sizing
Sized to study volume + content-gate depth.
Pixel-OCR redaction and encapsulated-document handling are the
heaviest operations; sizing reflects study volume and how much
of the content gate is enabled.
Tier
Study volume
CPU
RAM
Storage
Typical site
Small (single facility)
< 5,000 studies / day
4 vCPU
8 GB
250 GB (spool + quarantine + audit)
Imaging center feeding a single research program.
Medium (community hospital)
5,000 – 25,000 studies / day
8 vCPU
16 GB
1 TB
Full modality mix with pixel-OCR + HL7 report de-id.
Everything, plus the coded-concept harvest lane and the Clinical Cohort Builder — under two-person Expert-Determination export control.
Everything in Secure Ingest & Content Gate
Coded-concept harvest → PHI-free pseudonym-keyed cohort store
deid_cohort_export add-on with §164.514(b)(1) attestation gate
k-anonymity-floored cohort export
Active-active HA pair · premium support eligible
Per-deployment licensing. Multi-product bundles (De-ID Engine +
VNA Research + Router) get bundle pricing and shared site-key
provisioning. The Synthology-hosted deployment is offered as a
managed service — see
Managed services.
Documentation
The controlled-document set.
Current GA release
v1.0.1.63·released 2026-08-05
Every De-Identification Engine deployment ships with the documents below, all managed under SynthQMS document control. The DICOM Conformance Statement is publicly available; the rest are shared under mutual NDA.
What’s new·v1.0.1.63
Raw PHI in, research-safe data out — a dedicated de-identification pipeline
▸Secure, fail-closed ingest over mutually-authenticated TLS — DICOM C-STORE, HL7 v2, and DICOMweb STOW-RS — so an unrecognized peer is turned away before any object is read.
▸De-identification designed to support a HIPAA Expert-Determination workflow — identifiers are pseudonymized deterministically, so the same patient stays linkable across studies, and dates are shifted per patient to preserve intervals while obscuring the calendar.
▸A content gate beyond structured tags — scrubbing free-text report narratives, redacting burned-in pixel text with on-box OCR (never the cloud), and handling encapsulated PDFs — quarantining anything it cannot safely clean instead of forwarding it.
▸De-identify HL7 v2 result reports onto the same de-identified study’s timeline, and optionally harvest standards-coded clinical concepts into a PHI-free, pseudonym-keyed cohort store — gated by two-person export control and a k-anonymity floor.
▸Runs Synthology-hosted or on-prem, with the re-identification key kept only on the engine, durable store-and-forward, secrets sealed at rest, and a tamper-evident HIPAA audit log. Ships with the approved EULA and clears a full QA + security-test pass.
